(87-06) Jeep Wrangler Radiator



Click to enlarge image(s)

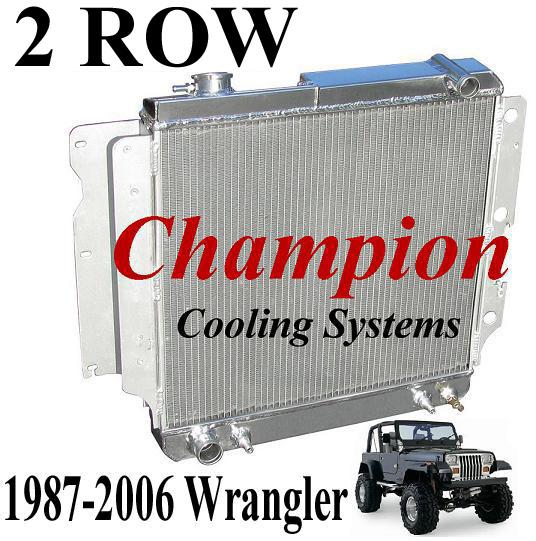

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp

Radiator Dimensions:
Total: 23.5" tall (including brackets) x 25.5" wide
Core: 18.5" tall x 20" wide 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13lb. Radiator Cap included
Transmission Cooler included (5/8-18 Straight Thread, Inverted Flare)
Oil cooler not compatible with quick disconnects. Includes barbed oil cooler fittings.
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" Electric Cooling Fan recommended for this core size

Compatible With
Jeep Wrangler YJ 1987-2006 (2.4L/2.5L V4 and 4.0L/4.2L V6)
