(47-54) Chevrolet Truck 2-row Champion Radiator

EC5100

EC5100

EC5100
Click to enlarge image(s)

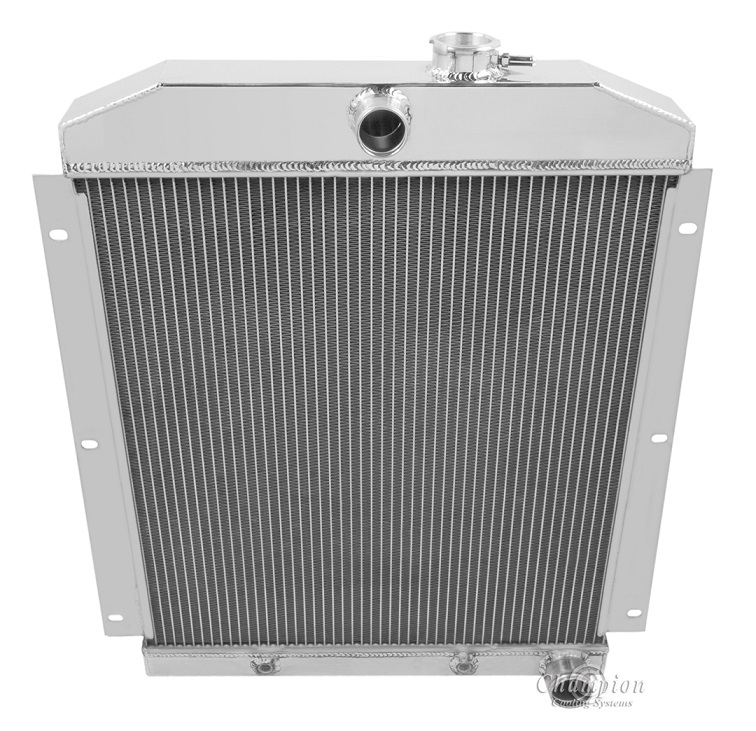

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

Radiator Dimensions:
Total: 25.5" tall (26.75" with cap) x 23" wide (with brackets)
Core: 20.75" tall x 19.25" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Angled Brackets match OEM

Transmission Cooler Included (1/2"- 20 straight thread)
13lb. Radiator Cap included
Aluminum shroud available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)



Compatible With
Chevrolet C/K Series 1947-1954
Chevrolet Suburban 1947-1954
Chevrolet Panel Truck 1947-1954
EC5100-6

EC5100-6

EC5100-6
Click to enlarge image(s)

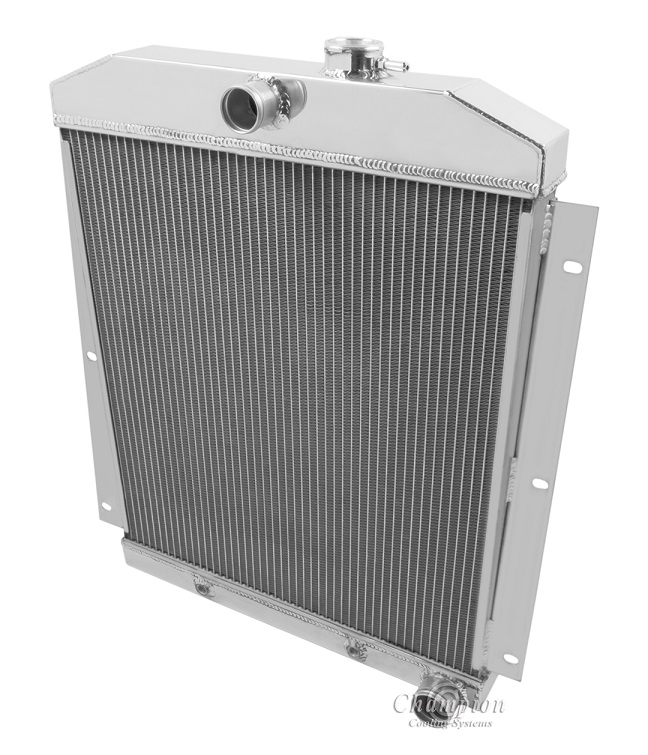

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp
This Radaitor has smaller outlets for 6-Cyl

Radiator Dimensions:
Total:
26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 1.63" thick
Inlet 1.25" center
Outlet: 1.5" passenger side
Tanks: 2." thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2" -20 straight thread)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size


Compatible With
Chevrolet C/K Series 1947-1954 (6 cylinder)
Chevrolet Suburban 1947-1954 (6 cylinder)
Chevrolet Panel Truck 1947-1954 (6 cylinder)
