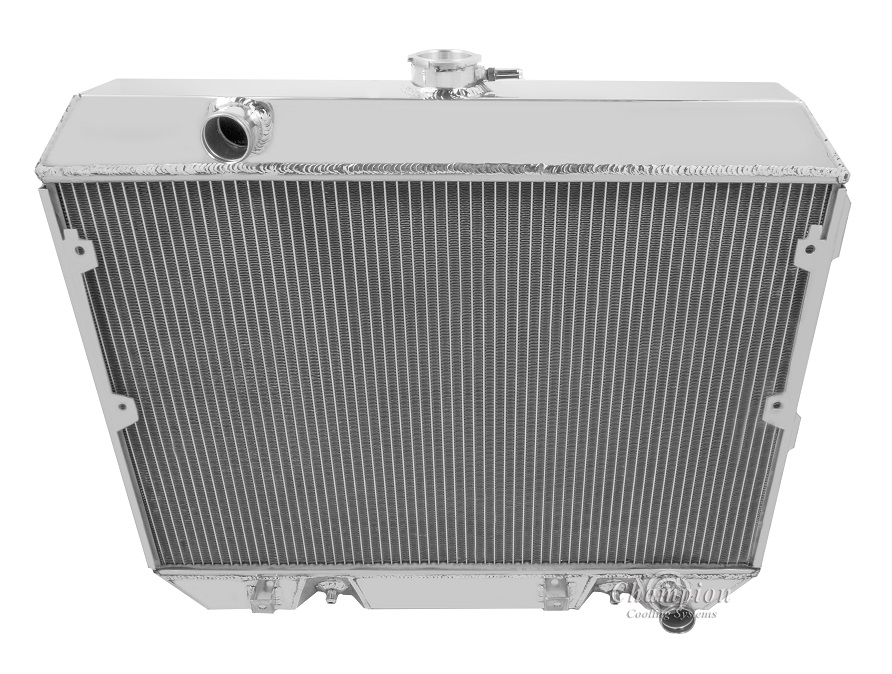

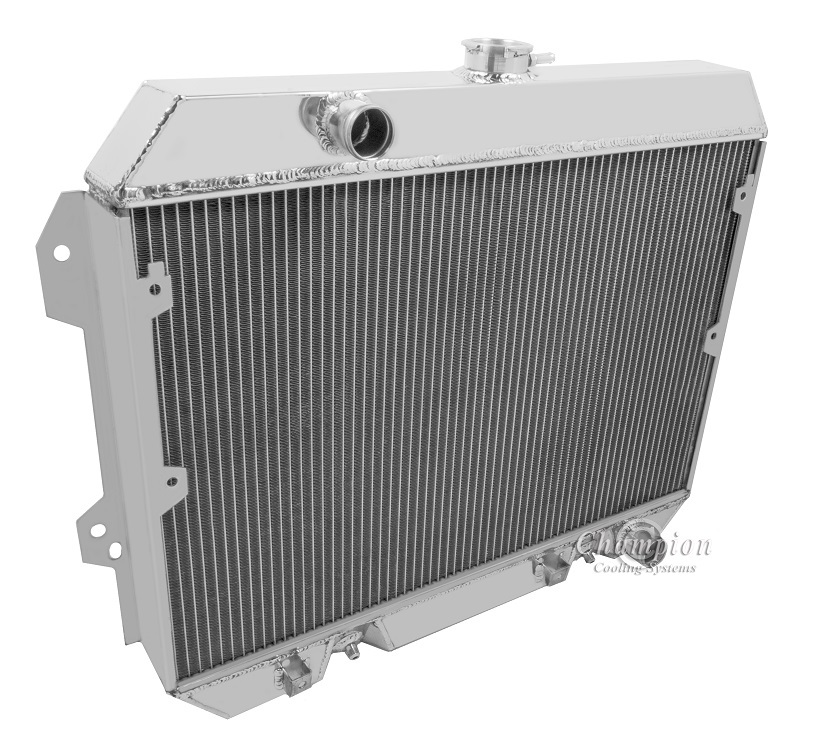

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

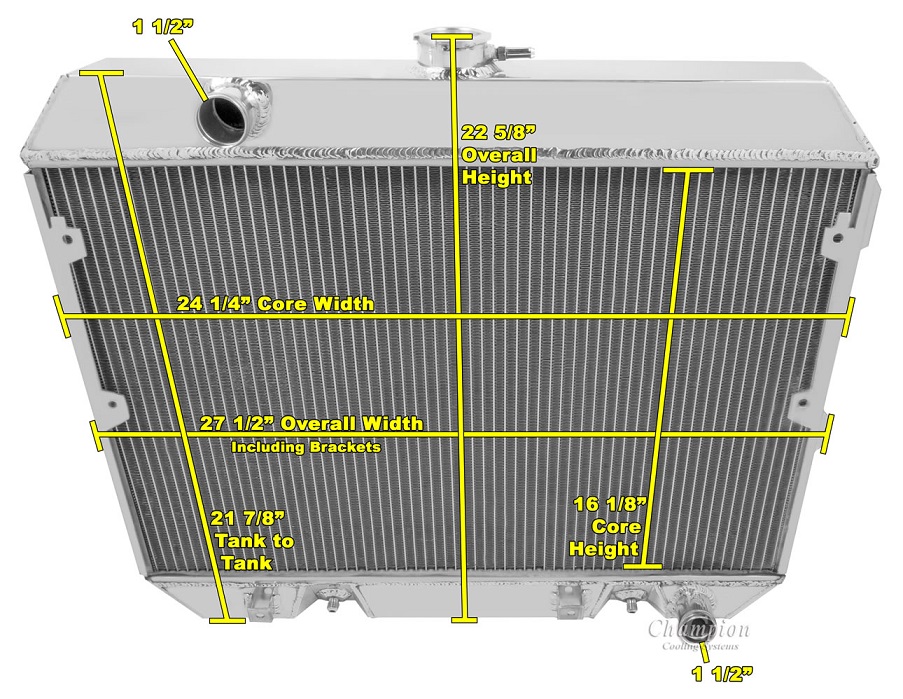

Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)

When using electric fans:
Two 11" Electric fans recommended for this core size (sold separately)
When Core mounting 11" fans the Shroud brackets need to be trimmed
to make room on the core.


Compatible With
Nissan/Datsun 280Z 1975-1978 (2.8L Straight 6-cylinder)
