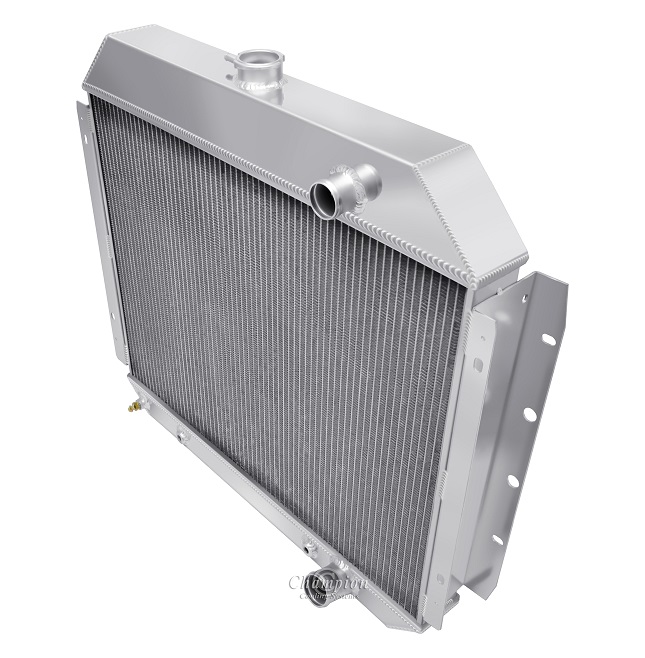

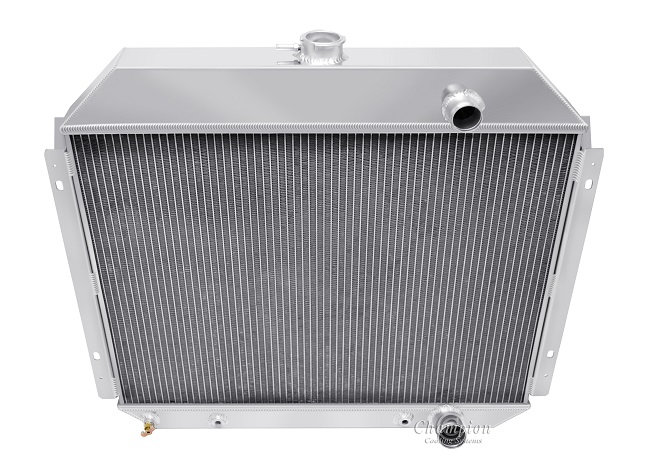

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
Note: Uses Grill Side Mounting Brackets

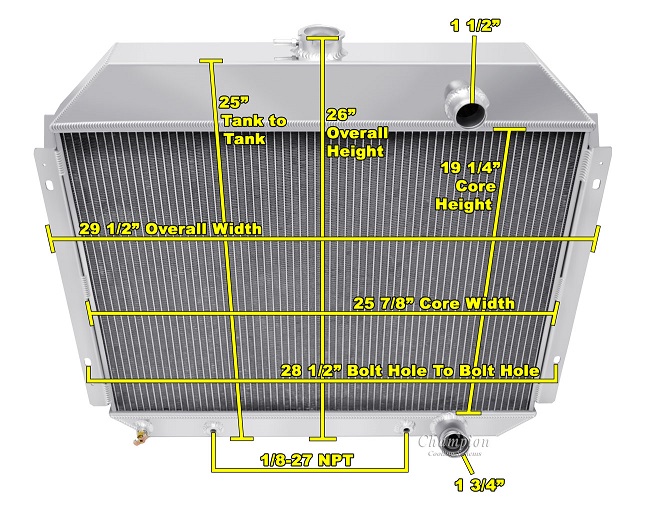

Radiator Dimensions:
Total: 25.13" tall (26.38" with cap) x 29.5" wide (with brackets)
Core: 19.25" tall x 25.83" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separetely)

Compatible With
1968 - 1979 F-100 3.9L 240ci L6, 4.9L 300ci L6
1975 - 1979 F-150 3.9L 240ci L6, 4.9L 300ci L6
1968 - 1979 F-250 3.9L 240ci L6, 4.9L 300ci L6
1968 - 1979 F-350 3.9L 240ci L6, 4.9L 300ci L6
