(66-77) Ford Bronco 4-row Champion Radiator

MC521

MC521

MC521
Click to enlarge image(s)

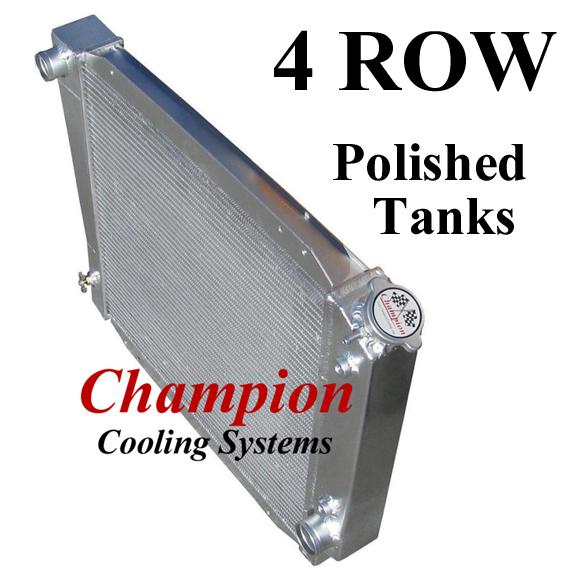

Champion All Aluminum Radiator
4-Row Core: Polished Tanks | Cools up to 650hp

Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

note: Make sure there is room in front of the water pump, custom mounts needed for 3 1/8" thick tanks



Compatible With
Ford Bronco 1966-1977 (302ci V8)
