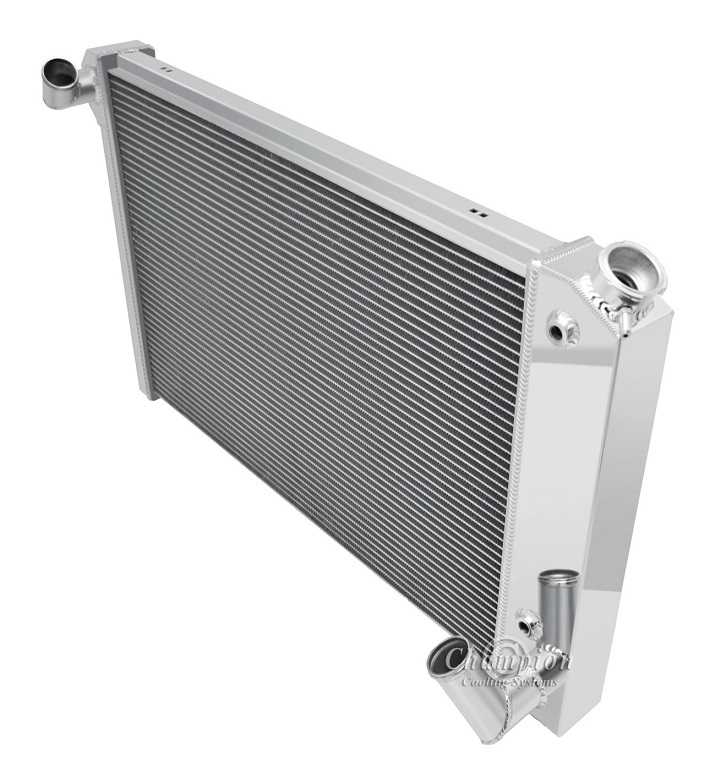

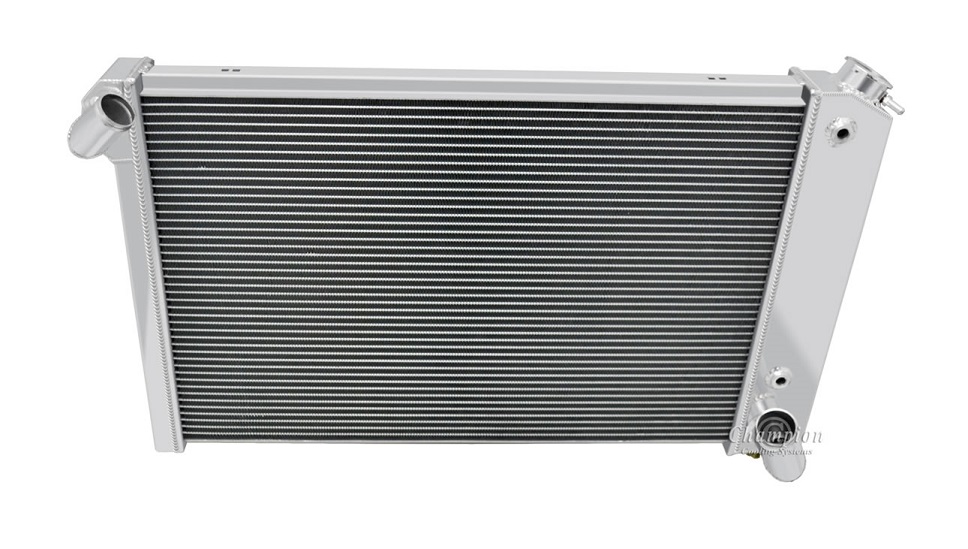

Chevrolet Corvette small block Champion radiator (69-72)

EC1655

EC1655

EC1655
Click to enlarge image(s)
All Aluminum Champion Radiator
2 Row Core | Cools up to 450hp |
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

16 lb. Radiator Cap Included
Transmission Cooler Included: 1/2"-20 Straight Thread


Compatible With
Chevrolet 1969-1972 (350ci V8 "small block")
CC1655

CC1655

CC1655
Click to enlarge image(s)

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included: 1/2"-20 Straight Thread
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Corvette 1969-1972 (350ci V8) "Small Block"
MC1655

MC1655

MC1655
Click to enlarge image(s)

Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped
outlet we do not carry it.

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 31.63" wide
Core: 17" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.125" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included: 1/2"-20 Straight Thread
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)



Compatible With
Chevrolet Corvette 1969-1972 (350ci V8) "Small Block"
